Diagrams, math and code

Diagrams and formulas are code blocks whose language says what to draw: mermaid for a diagram, latex for a formula. The source stays text, so it syncs, merges and exports like the rest of the document, and every device draws the picture from it.

Code blocks

Make a code block with Code block in the slash menu, with Ctrl+Shift+K (Cmd+Shift+K on macOS), or by typing three backticks at the start of a paragraph, then a space or Enter. A language name after the backticks (```python) sets the block’s language (Writing and formatting).

Inside a code block:

• Enter starts a new line in the block, and Tab types a tab.
• Ctrl+Enter (Cmd+Enter on macOS) splits the block at the caret. At its end, that starts an empty code block below, which Ctrl+0 or Backspace turns into a paragraph: the way to carry on writing after code at the end of a document.
• Ctrl+A (Cmd+A on macOS) selects the block’s code; a second press selects the whole document. A drag that starts in a code block stays in it.
• The status bar shows the caret’s line and column, as in Ln 3, Col 12.
• The selection menu offers no marks there, since code has none in Markdown.

The block’s language shows in its top-right corner, and an outline marks the block while the caret is in it.

The language menu

While the caret is in a code block, its tools sit above its top-right corner: the language menu, which shows the block’s language, then Copy the code, which copies the source without the fence. The menu offers Plain text, JavaScript, TypeScript, Rust, Python, Go, JSON, HTML, CSS, Shell, SQL, Markdown, Mermaid diagram, LaTeX formula, Swift, Kotlin, C, C++ and Java. A language typed after the backticks that the menu does not list is kept, and the menu shows its name.

Syntax colours

Language	Its names	Coloured
Rust	rust, rs	Keywords, strings, numbers, comments
JavaScript, TypeScript	javascript, js, jsx, typescript, ts, tsx	Keywords, strings, numbers, comments
Python	python, py	Keywords, strings, numbers, comments
Go	go, golang	Keywords, strings, numbers, comments
C, C++, C#, Objective-C, Swift	c, h, cpp, c++, hpp, cs, csharp, objc, swift	Keywords, strings, numbers, comments
Java, Kotlin, Scala	java, kotlin, kt, scala	Keywords, strings, numbers, comments
Shell	shell, sh, bash, zsh, fish	Keywords, strings, numbers, comments
SQL	sql, postgres, mysql, sqlite	Keywords, strings, numbers, comments
CSS	css, scss, less	Keywords, strings, numbers, comments
Ruby	ruby, rb	Keywords, strings, numbers, comments
JSON	json, jsonc	Strings, numbers, true, false, null, comments
HTML, XML, SVG, Vue	html, xml, svg, vue	Strings, numbers, <!-- --> comments
TOML, YAML, INI, Dockerfile, Makefile	toml, yaml, yml, ini, dockerfile, makefile	Strings, numbers, # comments
Mermaid	mermaid, mmd	Diagram types and structure words, strings, %% comments
LaTeX	latex, tex	Commands such as \frac, numbers, % comments
Plain text, Markdown	no name, text, markdown, md	Numbers only
Anything else	any other name	Strings, numbers, // and /* */ comments

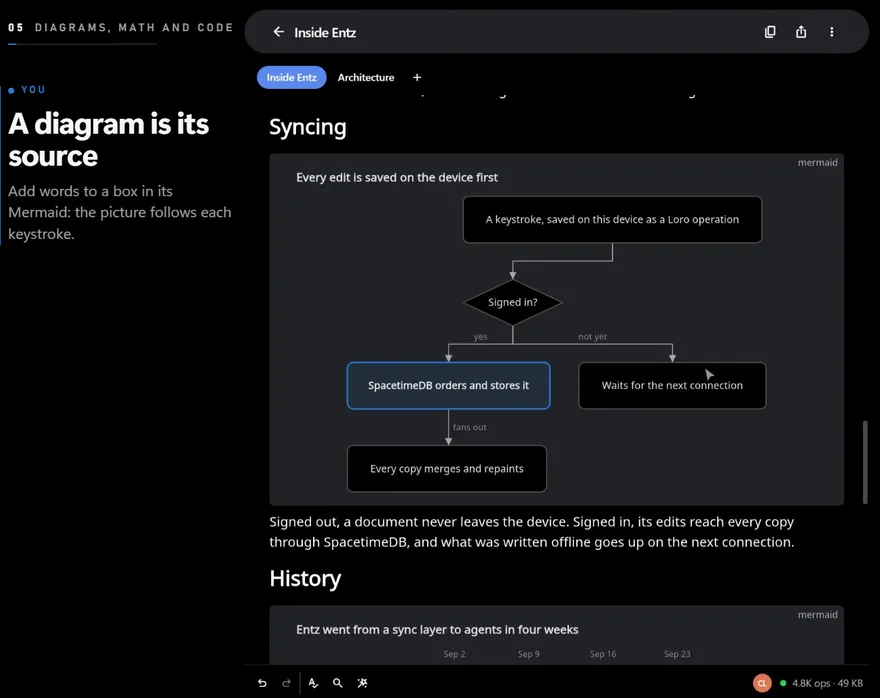

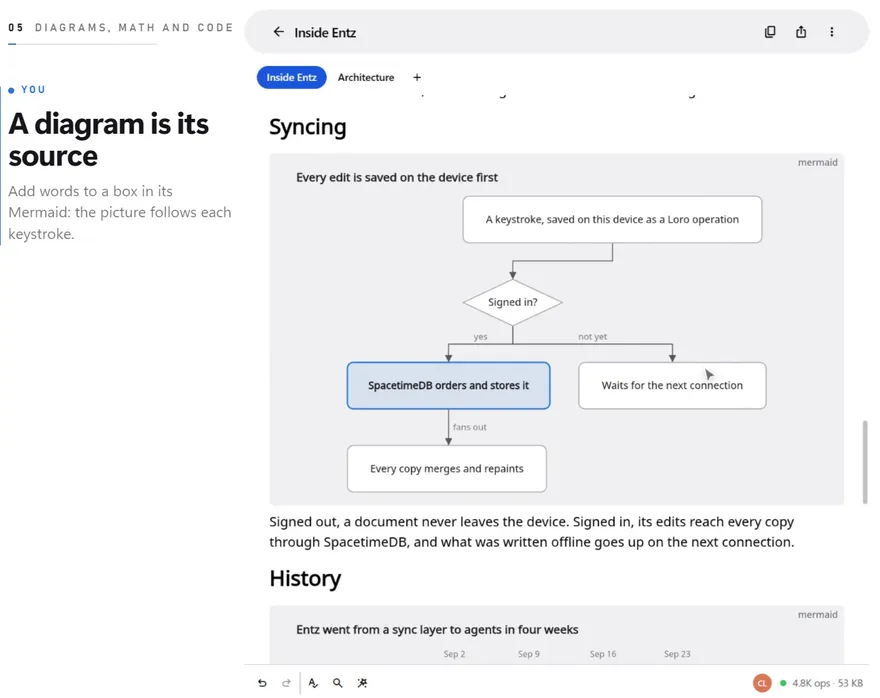

Mermaid diagrams

Make a diagram with Diagram in the slash menu (also found by typing mermaid, flowchart, chart or graph), by typing ```mermaid then a space or Enter at the start of a paragraph, or by choosing Mermaid diagram in a code block’s language menu. Markdown with a mermaid fence, pasted or imported, arrives as a diagram too, and mmd works as the language as well.

Editing a diagram

The block keeps one size whether or not the caret is in it, so the page never jumps:

• With the caret elsewhere, the diagram shows alone, centred, and scaled down to the width of the text when it is wider (never up).
• With the caret inside, the diagram fades and its source shows over it. A source longer than the diagram scrolls inside the box, and the mouse wheel scrolls the box before the page.
• A click on a diagram puts the caret in its source.

Every keystroke draws the diagram again. A slow diagram, one that took 30 milliseconds or more to draw, keeps its last picture while you type and is drawn again a quarter of a second after you stop. A source that draws nothing shows the parser’s first message in its place, and an empty block shows a hint. On the web, the first diagram or formula after the page loads says “Loading the diagram engine” for a moment.

While the caret is in a diagram, Download the diagram as an image among the block’s tools saves it as a PNG file, on the web.

What it draws

Diagram	The line that names it
Flowchart	flowchart TD or graph LR
Sequence diagram	sequenceDiagram
Class diagram	classDiagram
State diagram	stateDiagram-v2
Entity relationship diagram	erDiagram
Gantt chart	gantt
Pie chart	pie
Mind map	mindmap
Git graph	gitGraph
User journey	journey
Requirement diagram	requirementDiagram
Timeline	timeline
Quadrant chart	quadrantChart
Sankey diagram	sankey-beta
XY chart	xychart-beta
Block diagram	block-beta
Packet diagram	packet-beta
Architecture diagram	architecture-beta
C4 diagrams	C4Context, C4Container, C4Component, C4Dynamic, C4Deployment
Kanban board	kanban
Treemap	treemap
Radar chart	radar-beta

Boxes have rounded corners and Mermaid’s own spacing, labels on a flowchart’s or state diagram’s arrows sit as quiet words beside their lines, and an arrow that closes a loop is routed around the boxes between its ends. A title: in the source’s front matter is drawn above the diagram. Greys follow the theme, so a diagram reads in dark mode too; other colours stay as the source sets them.

One box can stand out: give it a colour with style or a classDef, and it gets a border in that colour, a light tint of it and a heavier label.

---
title: Reviews loop back until approved
---
flowchart TD
  Draft --> Review
  Review -->|approved| Ship
  Review -->|changes| Draft
  style Ship stroke:#2563eb

Charts

XY charts, pie charts, quadrant charts, Gantt charts and timelines are drawn in greys with one blue accent, and the title in a heavier weight. The accent goes where the source puts it: on a Gantt task tagged active, or on a quadrant point given a color:. A Gantt chart is drawn this way when its dates are written YYYY-MM-DD; with another dateFormat it gets a plainer drawing.

gantt
  title Relaunch plan
  dateFormat YYYY-MM-DD
  section Build
  Beta program :a1, 2026-10-06, 14d
  Feature freeze :milestone, 2026-10-20, 0d
  section Launch
  Support :after a1, 6d
  Launch day :milestone, active, 2026-11-10, 0d

Limits worth knowing

• Subgraphs can be drawn overlapping one another; a flowchart without them lays out cleanly.
• A long label on a branching arrow can be crossed by the line beside it, so keep arrow labels short.
• A long left-to-right flow is scaled down to fit the column. Top to bottom (flowchart TD) keeps the words larger.
• Sequence diagrams are drawn in part: some of Mermaid’s sequence features are missing.

Math

Formula blocks

Make a formula with Formula in the slash menu (also found by typing latex, tex, math or equation), by typing ```latex then a space or Enter, or by choosing LaTeX formula in a code block’s language menu. Write TeX as KaTeX reads it:

\int_0^1 x^2\,dx = \frac{1}{3}

A formula block behaves as a diagram does: the formula alone while the caret is elsewhere, the source over it while you edit, and a hint in an empty block. A source that does not parse shows the parser’s message instead. The formula is drawn at 1.2 times the size of the text. Black in it takes the theme’s text colour, so it reads in dark mode, while \color keeps the colour you ask for. A character that no math font has, such as a Chinese character or an emoji, is drawn in the editor’s own font. Download the formula as an image saves it as a PNG file, on the web.

Formulas from Markdown

Markdown has two forms of math, and both arrive typeset:

• $$ … $$ is a display formula: a block of its own that behaves like a formula block.
• $…$ inside a line is an inline formula, typeset in the line at the size of the text. While the caret touches it, or when it does not parse, it shows its source.

They come in with a Markdown file you import, a paste that reads as Markdown, and the words the assistant or an agent writes. The app has no control that turns selected words into a formula.

Export

Markdown keeps the source: a mermaid or latex fence, $$ for a display formula and $ for an inline one. HTML writes the source as text, marked with what it is, so a page can draw it with Mermaid or KaTeX of its own. For a picture of one diagram or formula, use its download button. Import and export covers the formats.
